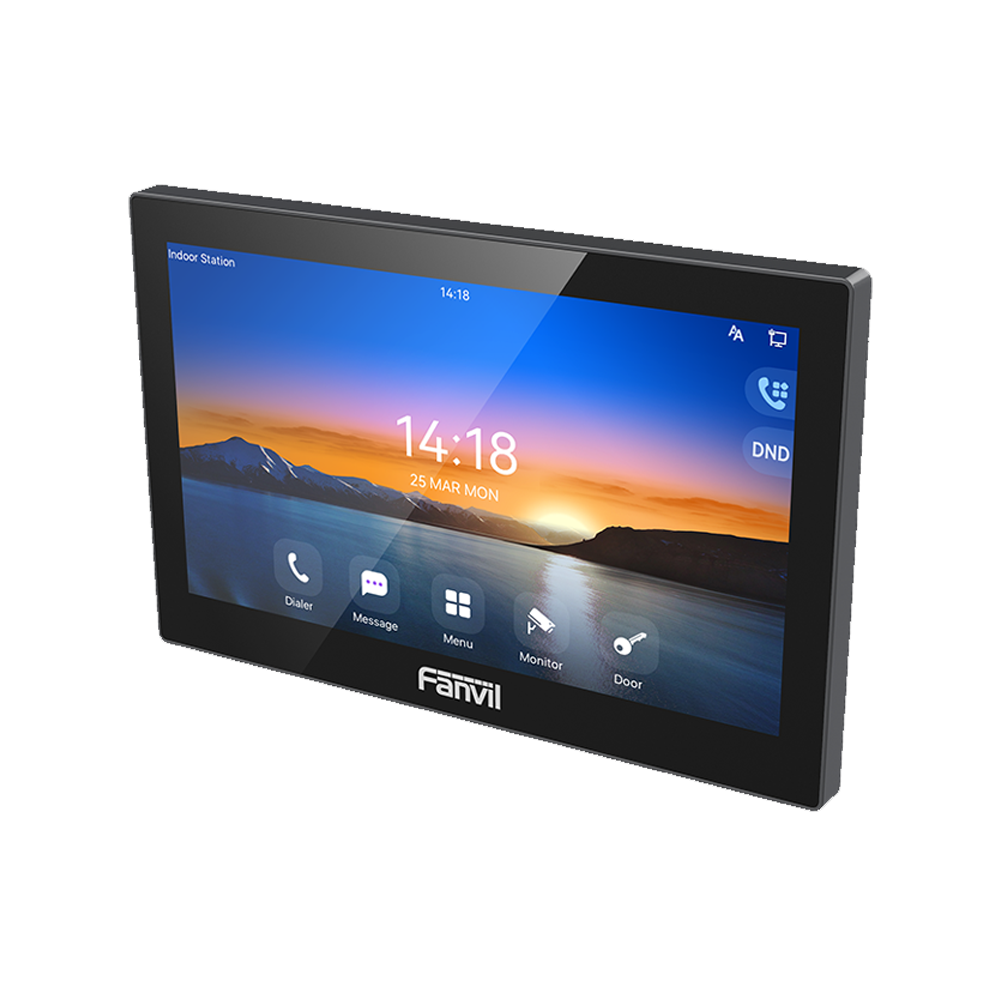

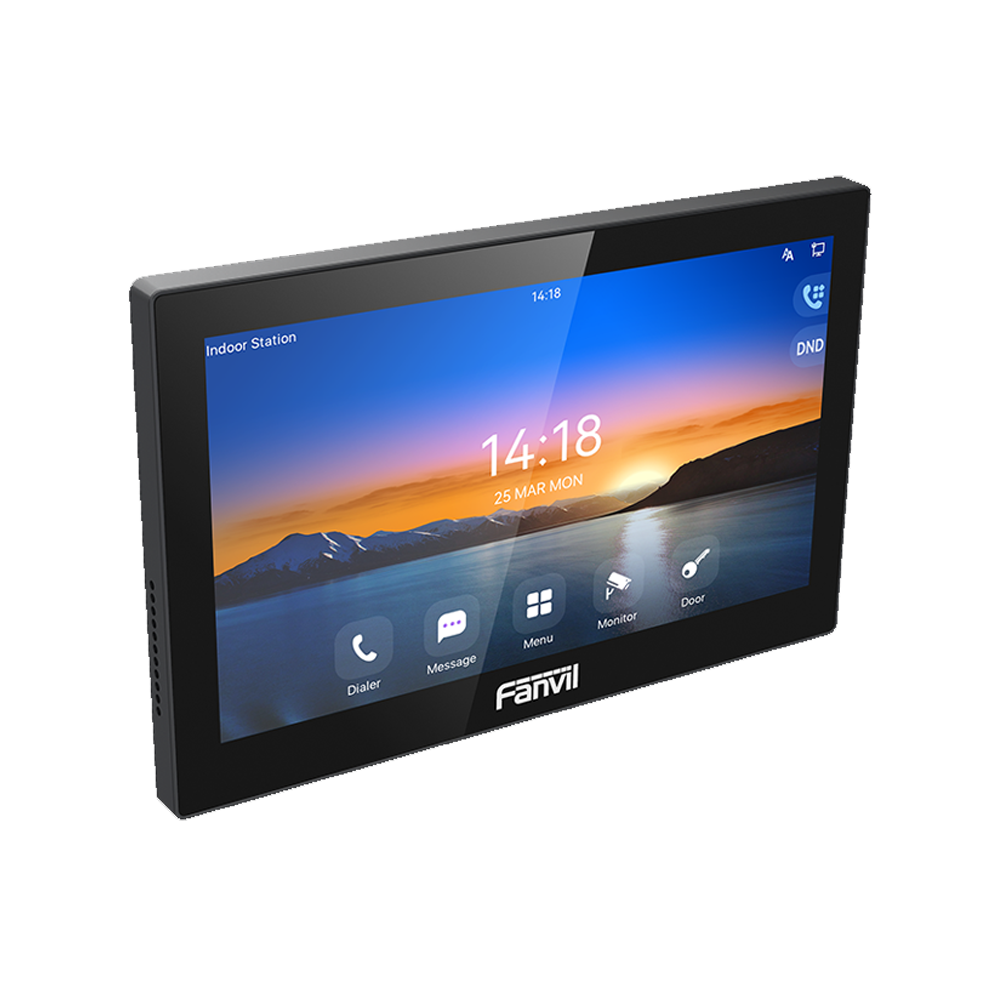

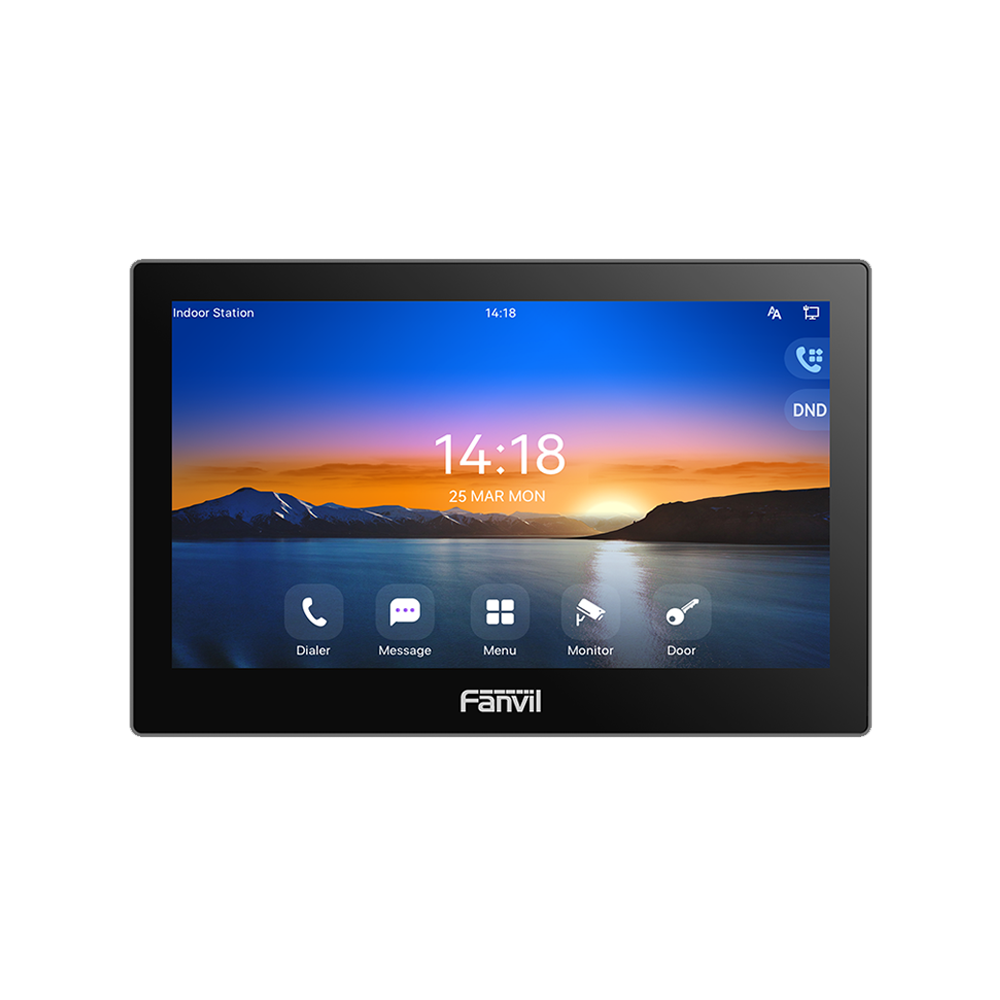

Fanvil i504 IP Intercom, 7″ Touch Screen (1024×600) 1080p (30fps)

Name: Fanvil i504 IP Intercom, 7" Touch Screen (1024x600) 1080p (30fps)
Brand: Fanvil
SKU: i504
Availability: InStock

Compare

The Fanvil i504 is a 7″ SIP indoor station with a 1024×600 touchscreen, HD audio, video monitoring, PoE support, and advanced access control integration—ideal for smart and secure building communication.

د.ك29.00

Compare

7-Inch Capacitive Touchscreen Display

The Fanvil i504 boasts a 7-inch color capacitive touchscreen with a resolution of 1024×600, delivering a responsive and user-friendly interface. This intuitive display simplifies navigation and enhances the user experience in residential and commercial settings.

High-Quality Audio Performance

Equipped with a 2W built-in speaker and advanced Acoustic Echo Cancellation (AEC) technology, the i504 ensures clear, two-way, hands-free communication. It supports a range of audio codecs, including G.722 and Opus, for superior sound quality.

Seamless Video Integration

The device supports real-time video monitoring from third-party IP cameras and door phones, enhancing security by allowing users to view live feeds directly on the touchscreen.

Comprehensive Connectivity Options

The i504 Video Intercom offers versatile connectivity with 8 alarm input interfaces, 1 short circuit output, 1 doorbell input, and 1 RS485 interface. These interfaces facilitate integration with various sensors and access control systems, providing a robust security solution.

Flexible Power and Network Support

Supporting both Power over Ethernet (PoE) and external DC power supply, the i504 ensures flexible installation options. It features a 10/100 Mbps Ethernet port for reliable network connectivity.

Advanced Video Capabilities

The indoor station supports video decoding up to 1080p at 30 frames per second, compatible with H.264 and optionally H.265 codecs. This ensures high-definition video communication and monitoring.

Enhanced Security Features

With support for remote door unlocking, customizable ringtones, and message sending/receiving, the i504 enhances security and convenience. Its integration with third-party IP cameras and access control systems makes it a comprehensive solution for secure environments.

User-Friendly Management and Configuration

The device offers web-based management, auto-provisioning, and firmware upgrades, simplifying deployment and maintenance. It supports protocols like SIP v1/v2, HTTP/HTTPS, and TR-069 for seamless integration into existing networks.

SKU: i504 Categories: IP-Intercom, Networking Tags: Fanvil, IP-Intercom Brand: Fanvil

Brand	Grandstream
Display & Interface	Screen: 7-inch capacitive color touchscreen with a resolution of 1024×600, offering a responsive and intuitive user experience. Operating System: Linux-based system ensuring stability and performance.
Audio & Video Capabilities	Audio: Speaker: Built-in 2W speaker. Audio Codecs: Supports G.722 and Opus for HD audio quality. Features: Equipped with Acoustic Echo Cancellation (AEC), Voice Activity Detection (VAD), Comfort Noise Generation (CNG), Background Noise Estimation (BNE), Noise Reduction (NR), Packet Loss Concealment (PLC), and Dynamic Adaptive Jitter Buffer for clear communication. Video: Decoding: Supports H.264 video decoding. Resolution: Capable of handling video resolutions up to 1080p at 30fps.
Network & Connectivity	Ethernet: 10/100 Mbps adaptive Ethernet port. Wi-Fi: The i504W variant supports dual-band Wi-Fi (2.4 GHz & 5 GHz) for flexible connectivity options. IP Protocols: Supports IPv4, IPv6, and dual-stack configurations. VPN Support: Compatible with L2TP and OpenVPN for secure remote connections.
Access Control & Interfaces	Alarm Inputs: 8 alarm input interfaces for integrating various sensors. Short Circuit Output: 1 output interface (built-in relay) with specifications of MAX DC30V / 2A, AC125V / 0.5A. Doorbell Input: 1 dedicated input for doorbell integration. RS485 Interface: 1 RS485 interface (reserved) for additional device integration.
Power & Installation	Power Supply: PoE: Supports IEEE 802.3af Power over Ethernet. DC Input: 12V/1A external power supply option. Power Consumption: Using Adapter: 2.71W to 5.53W. Using PoE: 3.65 W to 6.64 W. Installation: Designed for wall-mounted installation; desktop installation requires a separate stand.
