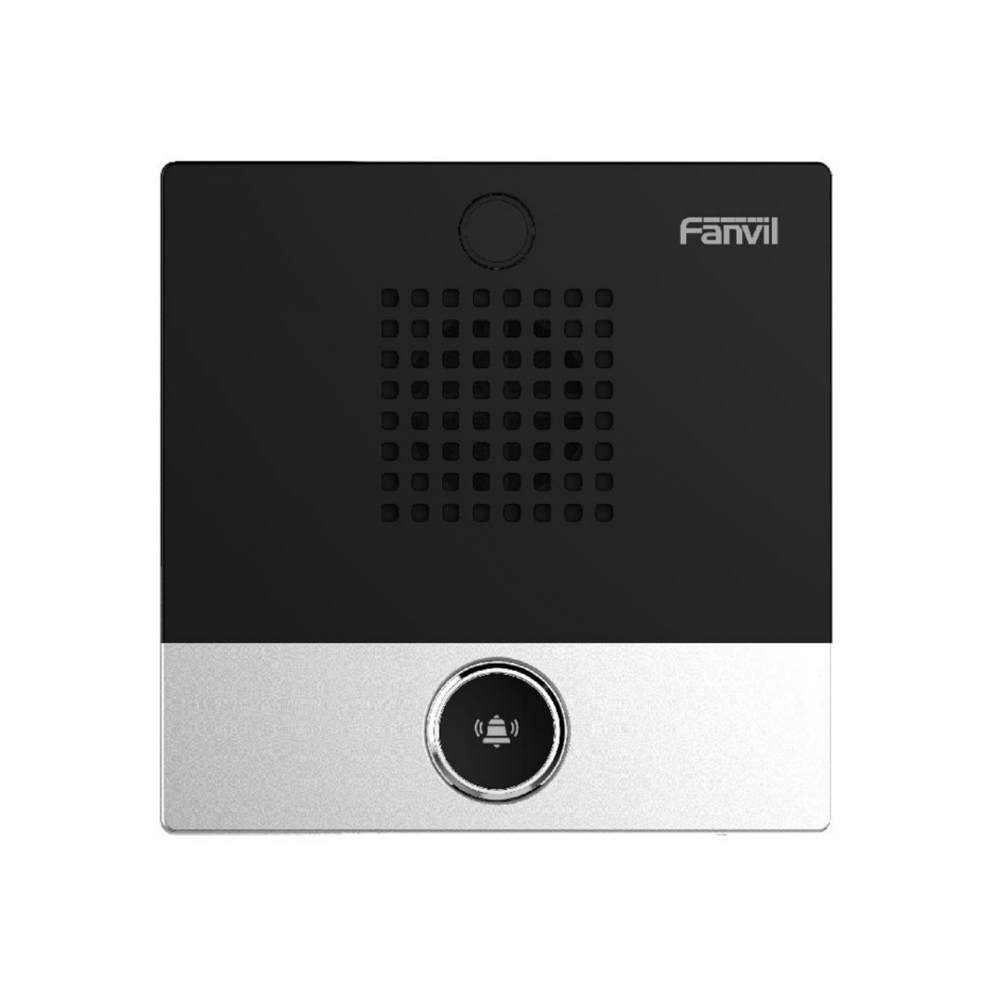

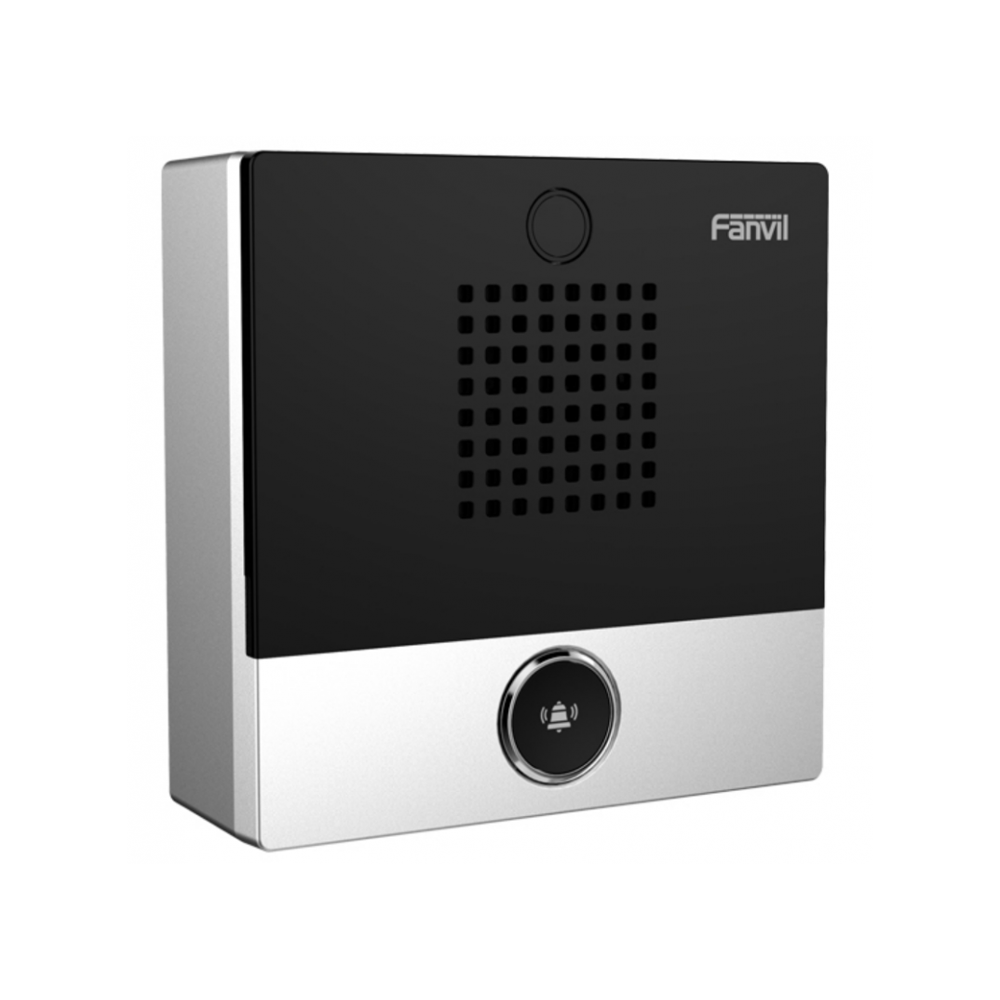

Fanvil i10S IP Audio Intercom, 180-Degree Coverage
Fanvil i10S IP Audio Intercom, 180-Degree Coverage - Image 2
Fanvil i10S IP Audio Intercom, 180-Degree Coverage - Image 3
Fanvil i10S IP Audio Intercom, 180-Degree Coverage - Image 4
,

Fanvil i10S IP Audio Intercom, 180-Degree Coverage

Compare

The Fanvil i10S is a compact SIP audio intercom designed for secure and efficient communication in indoor environments such as offices, apartments, and healthcare facilities. Its robust IP54-rated enclosure offers protection against dust and water, ensuring reliable performance in various settings.

د.ك22.00

Compare

The Fanvil i10S is a compact SIP audio intercom designed for secure and efficient communication in indoor environments such as offices, apartments, and healthcare facilities. Its robust IP54-rated enclosure offers protection against dust and water, ensuring reliable performance in various settings

  • Audio Communication: Equipped with a full-duplex speakerphone and Acoustic Echo Canceller (AEC) for clear two-way conversations.

  • SIP Compatibility: Supports 2 SIP lines and is compatible with major VoIP platforms including Asterisk, 3CX, Broadsoft, and Avaya.

  • Power over Ethernet (PoE): Simplifies installation by allowing both power and data transmission over a single Ethernet cable.

  • Durable Design: IP54-rated for dust and water resistance, with an operating temperature range of -20°C to 50°C.

  • Easy Installation: Supports wall mounting and offers straightforward configuration through a web interface.

SKU: i10S Categories: , Tags: , , Brand:
Brand Fanvil
Audio Codecs

Narrowband: G.711A/U, G.729A/B

Wideband: G.722, Opus

DTMF: In-band, Out-of-Band (RFC2833/SIP INFO)
Network & Security

Ethernet: 10/100 Mbps

IP Configuration: Static IP, DHCP, PPPoE

IP Modes: IPv4, IPv6, Dual Stack

VPN Support: L2TP, OpenVPN

Network Protocols: SIP v1/v2 over UDP/TCP/TLS, RTP/RTCP/SRTP, STUN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069

Security Features: 802.1x authentication, VLAN, LLDP, QoS
Interfaces

Network Port: 1 x RJ45 (WAN)

Relay Interface: 1 x short circuit input/output port (built-in relay)

Relay Capacity: Max DC30V/1A, AC125V/0.5A

Audio Output: 1 x audio output interface

Deployment & Management:

  • Auto-Provisioning: Supports FTP/TFTP/HTTP/HTTPS, DHCP Option 66, SIP PnP, TR-069
  • Management Tools: Web management portal, web-based packet dump, configuration export/import, firmware upgrade, syslog
General

SIP Lines: 2

Audio: HD audio with full-duplex speakerphone and Acoustic Echo Canceller (AEC)

Button: 1 programmable DSS key (speed dial)

Power Supply: Supports both Power over Ethernet (PoE, IEEE 802.3af Class 3) and DC 12V/1A input

Housing Material: ABS plastic

Installation: Wall-mounted

Protection Level: IP54-rated for dust and water resistance

Operating Temperature: -20°C to 50°C

Dimensions: 88 x 88 x 32 mm
Compatibility

Compatible with major VoIP platforms including Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya, and more
